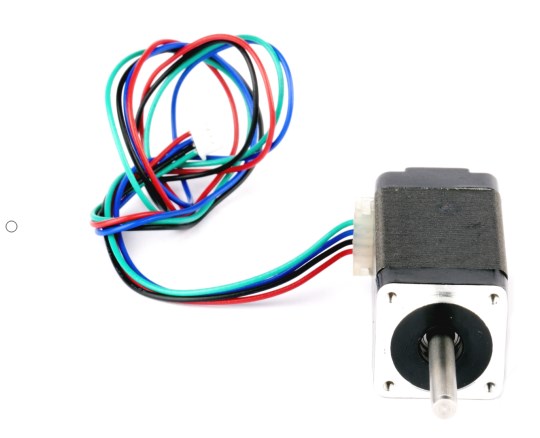

Part No.:   20BYGH408Single Shaft

Frame Size:  NEMA8

Step Angle:    1.8 degree

Voltage:        4.32VDC

Current:          0.8A/phase

Resistance:    5.4Ohm/phase

Inductance:     1.5mH/phase

Holding torque: 30Kg-cm

Rotor inertia:   3.6 g-cm2

Detent torque:    5 kg-cm

Number of wire leads:  4

Weight:   0.2KG

Length:40mm

Front shaft diameter: 4mm

Front shaft length:  20mm round shaft

This model is for Single shaft, with 4mm motor shaft, 20mm front shaft length, round shaft!
