Part No.:  28BYGH102Single Shaft

Frame Size:  NEMA11

Step Angle:    1.8 degree

Voltage:       3.8VDC

Current:          0.67A/phase

Resistance:    5.6Ohm/phase

Inductance:     3.4mH/phase

Holding torque: 60Kg-cm

Rotor inertia:   9g-cm2

Detent torque:    4kg-cm

Number of wire leads:  4

Weight:   0.11KG

Length:32mm

Front shaft diameter: 5mm

Front shaft length:  20mm round shaft

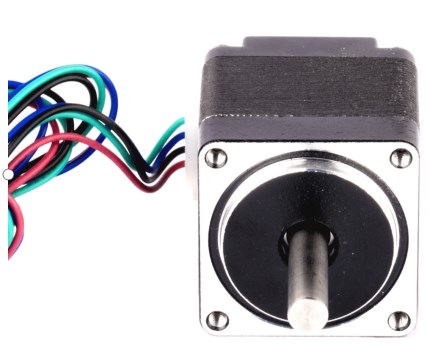

This model is for Single shaft, with 5mm motor shaft, 20mm front shaft length, round shaft!
