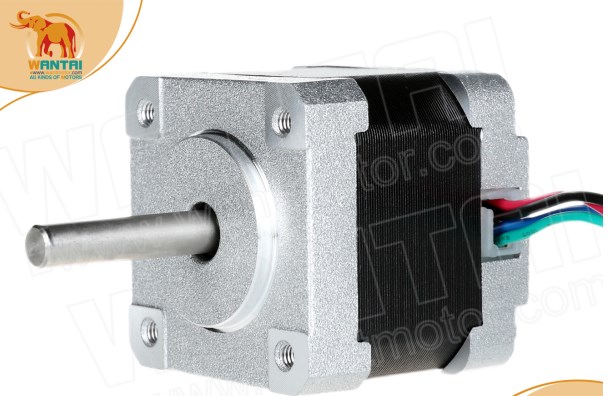

Product Name:35BYG101Single Shaft

Product Details:
Model:
Select Payment and Shipping Terms:
Min. Order Quantity:
1 Piece/Pieces
Place of Origin:
Min. Order:
FOB Price:
0.00-0.00 /
Shipping Terms:
Shippment Port:
Payment Terms:
Show Buyers your Ability to Supply:
Production Capacity:
0
Delivery Time:
Packaging:

Detailed Product Description:

Part No.:  35BYG101Single Shaft

Frame Size:  NEMA14

Step Angle:    1.8 degree

Voltage:       12VDC

Current:          0.5A/phase

Resistance:    24Ohm/phase

Inductance:     9mH/phase

Holding torque: 60Kg-cm

Rotor inertia:   6g-cm2

Detent torque:   8kg-cm

Number of wire leads:  6

Weight:   0.1KG

Length:20mm

Front shaft diameter: 5mm

Front shaft length:  24mm round shaft

This model is for Single shaft, with 5mm motor shaft, 24mm front shaft length, round shaft!
