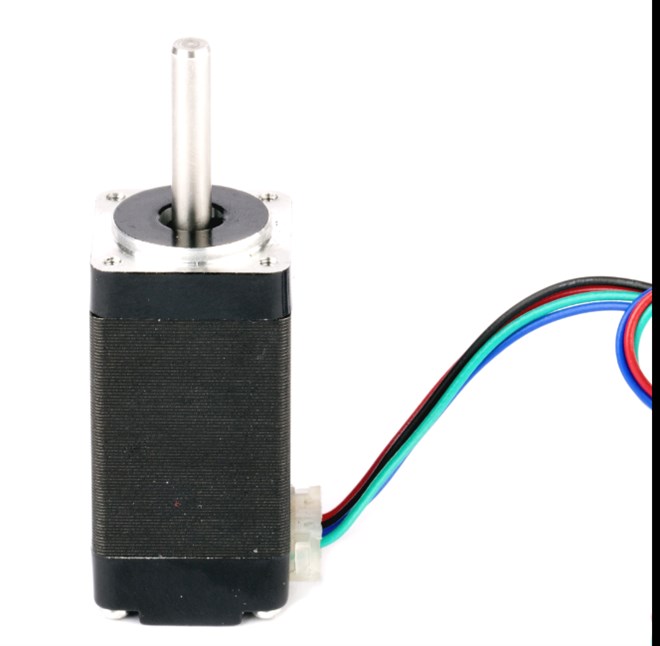

Part No.:   20BYGH202 Single Shaft

Frame Size:  NEMA8

Step Angle:    1.8 degree

Voltage:        4.6VDC

Current:          0.2 A/phase

Resistance:    23 Ohm/phase

Inductance:     8.2 mH/phase

Holding torque: 14Kg-cm

Rotor inertia:   9 g-cm2

Detent torque:    2 kg-cm

Number of wire leads:  4

Weight:   0.05KG

Length:   28mm

Front shaft diameter: 4mm (1/4'')

Front shaft length:  20mm round shaft

This model is for Single shaft, with 4mm motor shaft, 20mm front shaft length, round shaft!
